UT Immersion Scanning: Bar & Billet Rotator

Automated rotary immersion UT for round stock up to 16″ diameter and 36 ft long | NADCAP Accredited | Pratt & Whitney Approved

Request A Quote

Contact Us

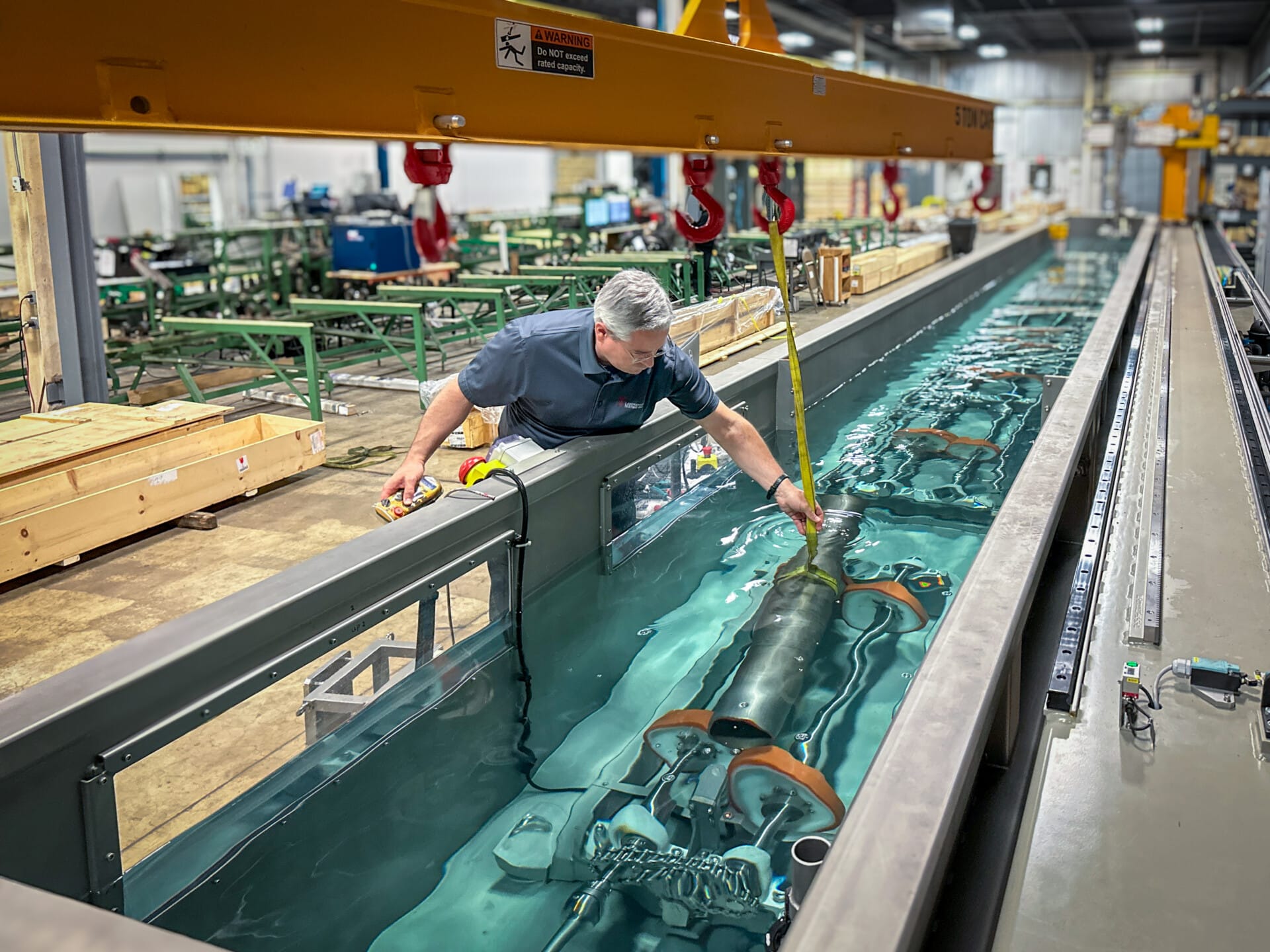

LTI bar and billet immersion scanning process

Automated UT Immersion Scanning for Round Stock

UT immersion scanning for bar and billet uses high-frequency sound waves directed through water to detect internal defects across the full cross-section of round stock. It is the standard method for OEM-required inspection of aerospace and industrial bar, billet, and round materials.

Laboratory Testing (LTI) operates the ScanMaster LS-200B, an automated rotary immersion system capable of inspecting round bar and billet up to 16″ in diameter and 36 ft in length, with flat product capability up to 11″ wide. LTI is NADCAP accredited and approved to Pratt & Whitney, Aerojet Rocketdyne, SpaceX, and additional customer specifications.

Material / Product Types

LTI’s Bar & Billet Rotator handles a range of round and flat product forms:

Rounds: bar and billet
Flat product: rectangular bar, plate
Additional shapes (confirm with lab)

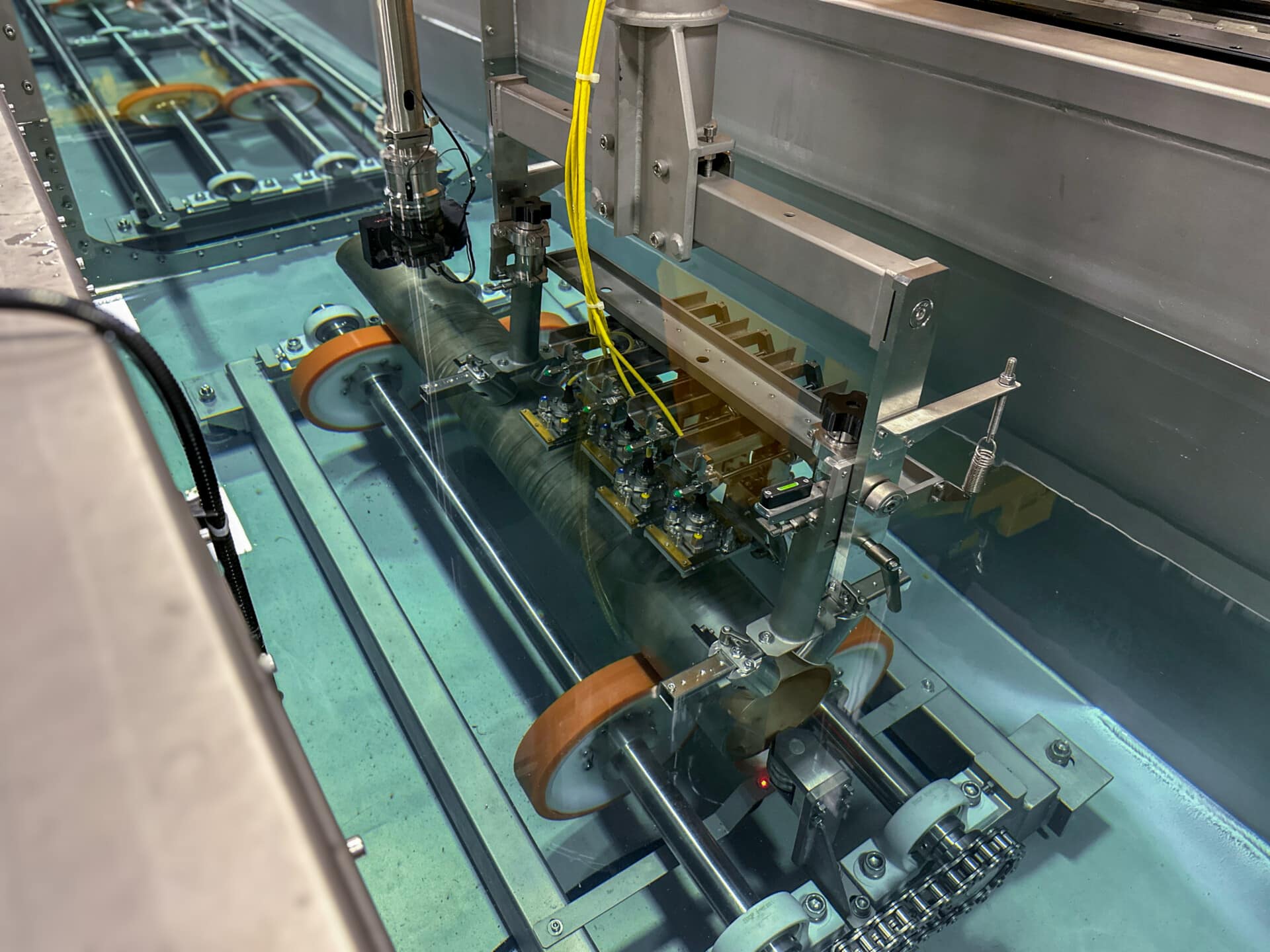

UT immersion scanning transducers bar rotator

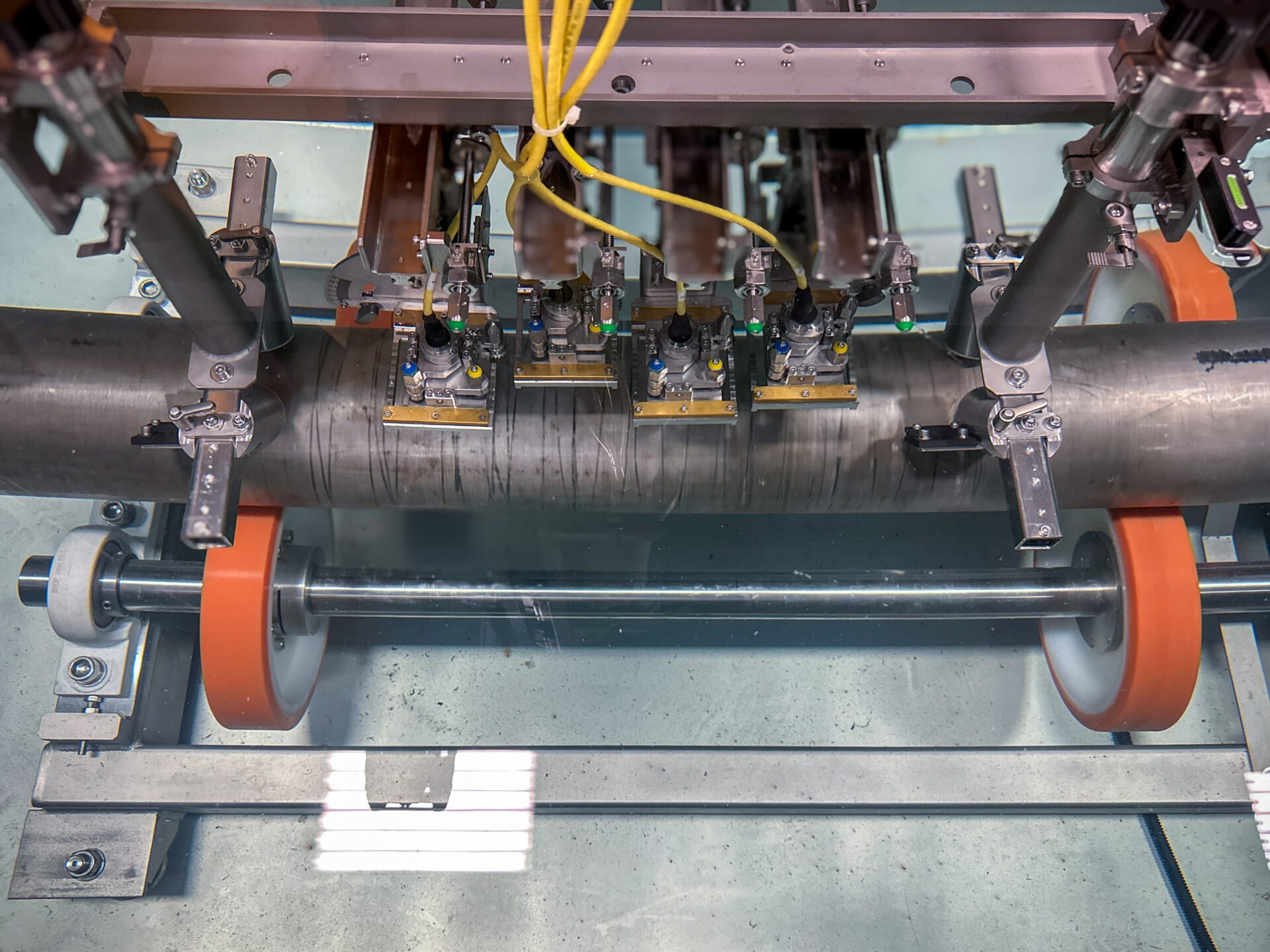

LTI bar billet rotator ultrasonic probes

UT Scanning Capabilities

The ScanMaster LS-200B delivers multi-mode scanning for complete volumetric and surface coverage of round and flat stock:

Longitudinal wave
Circumferential shear wave
Backwall echo monitoring
Dual-gimbal axial shear with localized re-scan
Detects No.1 FBH at 0.06″ depth (≥18 dB SNR, 10 MHz)
95 dB dynamic gain range

Software & Reporting

All inspections are performed using ScanMaster CSI software, providing real-time imaging and automated reporting:

ScanMaster CSI: real-time A/B/C-scan imaging
Stop-on-Defect and Search & Identify flaw tools
30 MB/s real-time data acquisition
CAD import and TCP programming
Automated inspection reports and flaw statistics
Smart A-scan capture and re-scan verification

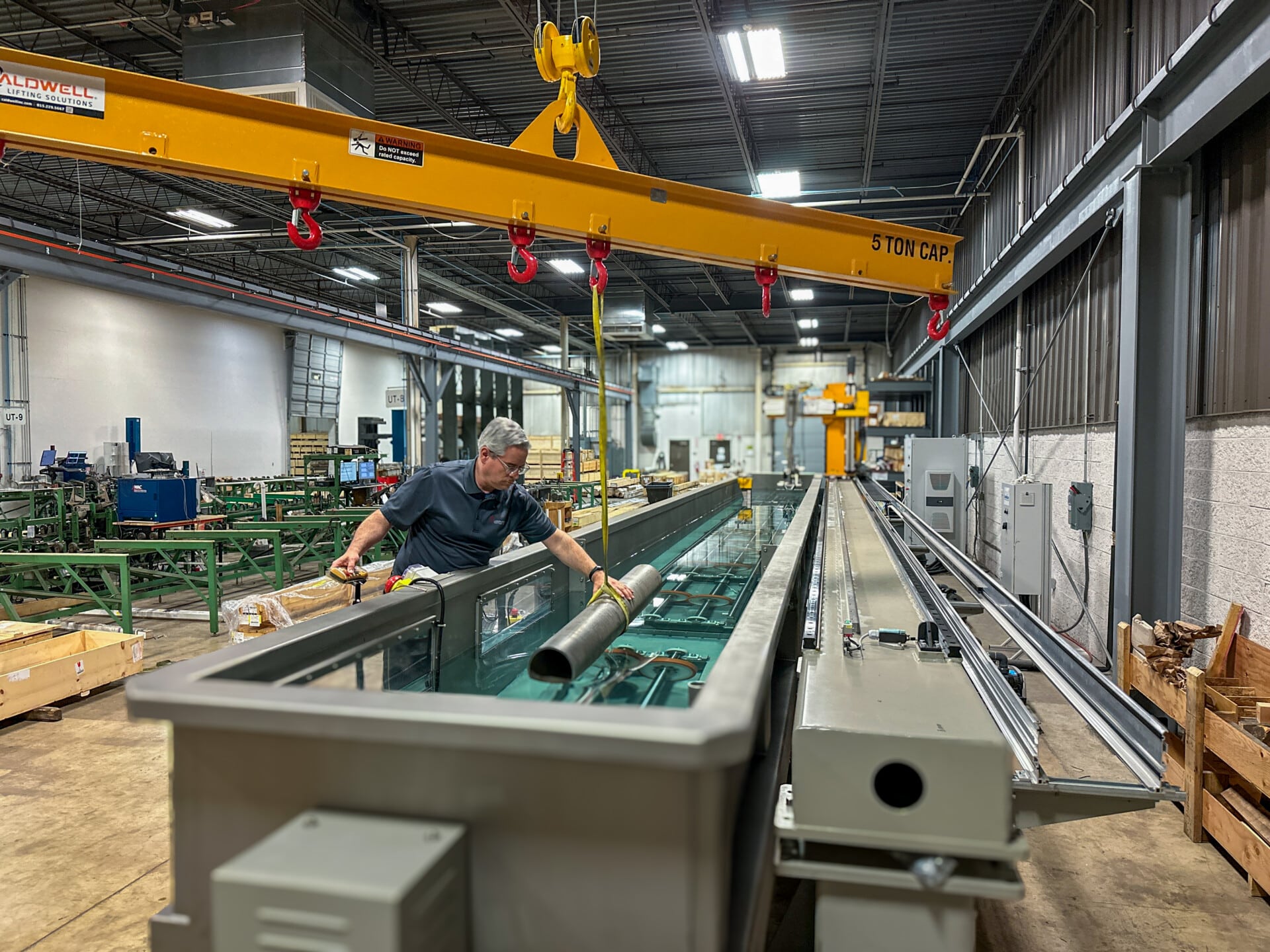

LTI UT immersion scanning bar billet rotator tank

Frequently Asked Questions

What is the maximum bar or billet size LTI can inspect with immersion UT?

LTI’s Bar & Billet Rotator inspects round stock up to 16″ in diameter and 36 ft in length. Flat product up to 11″ in width is also accommodated. Maximum part weight is 5,000 lbs.

What types of materials can LTI inspect on the Bar & Billet Rotator?

LTI inspects round bar and billet, rectangular bar, and plate. Additional shapes may be accommodated depending on geometry. Contact the lab to confirm suitability for your specific product form.

Is LTI NADCAP accredited for UT immersion scanning of bar and billet?

Yes. LTI is NADCAP accredited and performs UT immersion scanning to ASTM immersion inspection standards and customer-specific specifications for Pratt & Whitney, Aerojet Rocketdyne, SpaceX, and more.

What OEM approvals does LTI hold for bar and billet immersion UT?

LTI holds approvals for Pratt & Whitney, Aerojet Rocketdyne, SpaceX, and more. All inspections are performed to ASTM immersion inspection standards under NADCAP accreditation.

Specifications

Scan Envelope

Round diameter up to 16″
Length up to 36 ft
Flat product up to 11″ width
Up to 5,000 lbs per piece

OEM / Standards Compliance

Pratt & Whitney | Aerojet Rocketdyne | SpaceX, and more
NADCAP Accredited | ASTM immersion inspection standards
